Land surveying is a profession that combines precision, mathematics, and technology to measure and map land boundaries, construction sites, and natural features. Surveyors play a critical role in urban planning, civil engineering, property development, and environmental studies. Over the years, technological advancements have transformed surveying, making it more accurate, efficient, and versatile. Today, a land surveyor’s toolkit is a mix of traditional instruments and cutting-edge digital technology.
1. Total Stations

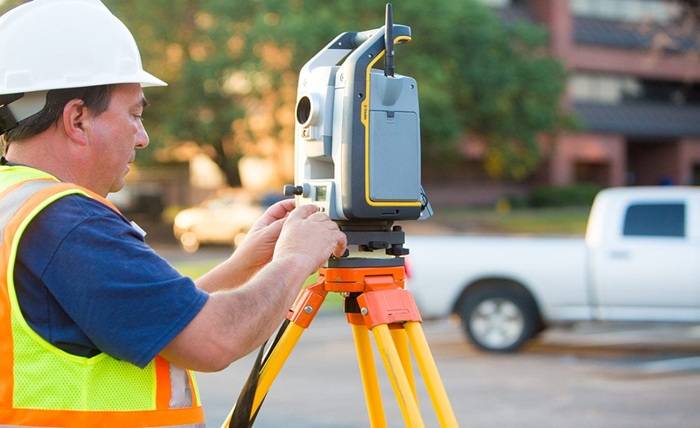

One of the most important tools in a surveyor’s arsenal is the total station. A total station is an electronic/optical instrument that combines a theodolite with an electronic distance measurement (EDM) device. It allows surveyors to measure horizontal and vertical angles, as well as distances, with high precision. Modern total stations often include integrated GPS and data collection capabilities, enabling the seamless transfer of measurements to computers and cloud-based platforms. Skilled land surveyors rely on total stations to achieve highly accurate and efficient measurements in complex terrain. These devices are essential for boundary surveys, topographic mapping, and construction layout.
2. Global Navigation Satellite Systems (GNSS)
Global Positioning System (GPS) technology has revolutionized land surveying, but today’s surveyors often use more advanced Global Navigation Satellite Systems (GNSS), which include GPS (U.S.), GLONASS (Russia), Galileo (Europe), and BeiDou (China). GNSS receivers can determine precise coordinates in real time, making large-scale surveys faster and more accurate. Survey-grade GNSS receivers provide centimeter-level precision, which is critical for engineering projects, infrastructure planning, and cadastral surveys. These systems often integrate with Geographic Information Systems (GIS) software for mapping and analysis.
3. Levels and Laser Levels
Traditional levels are fundamental for establishing elevation differences between points on the land. While optical levels are still in use, laser levels have become increasingly popular due to their ease of use and accuracy. Laser levels project a constant reference plane, allowing surveyors to measure elevations over long distances with minimal setup. They are particularly useful in construction surveys, roadwork, and grading projects, ensuring that structures are level and properly aligned.
4. Theodolites
Although largely replaced by total stations in many operations, theodolites remain a staple for angular measurements. These devices measure horizontal and vertical angles with great precision, which is essential for triangulation and establishing boundary lines. Modern electronic theodolites can connect to computers, allowing data to be recorded digitally and reducing human error.
5. Drones and Unmanned Aerial Vehicles (UAVs)
In recent years, drones have become a transformative tool in land surveying. Equipped with high-resolution cameras and LiDAR sensors, drones can capture aerial imagery and topographic data rapidly, covering large areas in a fraction of the time required by ground surveys. Drone technology is particularly useful in inaccessible or hazardous terrain, providing a bird’s-eye view for mapping, volumetric analysis, and environmental monitoring. Surveyors use software to process drone imagery into 3D models, orthophotos, and contour maps, enhancing the speed and accuracy of survey projects.
6. LiDAR Technology
Light Detection and Ranging (LiDAR) is a remote sensing technology that uses laser pulses to measure distances to the Earth’s surface. LiDAR generates highly detailed 3D representations of terrain, vegetation, and structures. Mounted on drones, vehicles, or tripods, LiDAR systems allow surveyors to perform topographic and cadastral surveys with unparalleled accuracy. LiDAR is particularly valuable for forestry management, floodplain mapping, and infrastructure planning in complex landscapes.
7. GIS Software
Data collected by survey instruments is only useful if it can be analyzed and visualized. Geographic Information Systems (GIS) are software platforms that allow surveyors to manage, analyze, and present spatial data. GIS integrates coordinates, elevations, imagery, and attribute data into maps and models. It is essential for urban planning, environmental studies, transportation design, and utility management. Popular GIS software tools provide features like terrain analysis, route optimization, and data layering, which help surveyors make informed decisions and communicate findings effectively.
8. Surveying Tripods and Accessories
Surveying instruments require stable support, which is provided by tripods. A sturdy tripod ensures that total stations, levels, and theodolites remain perfectly stable, minimizing errors caused by movement. Accessories such as prism poles, tribrachs, and mounting adapters further enhance accuracy and ease of setup. High-quality equipment also includes protective cases to safeguard instruments in rugged field conditions.
9. Digital Data Collectors
Modern surveying instruments generate massive amounts of data. Digital data collectors allow surveyors to record, store, and transfer data efficiently. These devices often connect to total stations, GNSS receivers, and laser scanners, enabling real-time monitoring and error checking. Data collectors reduce manual transcription errors and integrate directly with CAD and GIS software for processing and mapping.
10. Safety Equipment
Fieldwork can expose surveyors to hazards like traffic, rough terrain, and extreme weather. Essential safety equipment includes high-visibility clothing, hard hats, safety boots, gloves, and protective eyewear. Surveyors working in areas with vehicle traffic may also use signage and cones to secure the site. Safety protocols are crucial to ensure both the accuracy of work and the well-being of the surveyor.
11. Emerging Technologies
The surveying field continues to evolve with innovations like robotic total stations, augmented reality (AR) interfaces, and mobile mapping systems. Robotic total stations allow a single surveyor to control the instrument remotely, increasing efficiency. AR can overlay survey data on the real world, helping planners and engineers visualize proposed changes on site. Mobile mapping systems combine GNSS, LiDAR, and high-resolution cameras to capture large-scale surveys quickly and accurately, making them invaluable for city planning and infrastructure monitoring.
Conclusion
The role of a land surveyor has transformed from manual measurements and hand-drawn maps to a sophisticated, technology-driven profession. Today, surveyors rely on an integrated suite of equipment, from traditional theodolites and levels to drones, LiDAR, GNSS receivers, and GIS software. Mastery of these tools ensures that surveyors can provide accurate, reliable data for construction, property management, environmental analysis, and urban planning. As technology continues to advance, the surveying profession will likely become even more efficient and precise, making it a crucial backbone of modern development projects.
